Ozone supply

Function and Features

• The particles is not generated.

• The high concentration ozone gas can be generated without nitrogen.

• Ozone gas of the very small quantity can be introduced into a vacuum chamber.

• For ozone cleaning is not necessary to stop the equipment during normal operation.

• This ozone supply is low noise. It can be installed in the vicinity of the EB equipment.

Ozone supply

Specification

Ozone concentration： 200g/m3
Ozone generation system： Silent discharge method
Supply Ozone rate： maximum 5.0sccm
Raw material gas： Cylinder oxygen、PSA oxygen
Raw material gas consumption： 50ml/min
Cooling method： Water-cooling

PAGE TOP

This technology can be used to SEM, EB exposure system and EB inspection system.

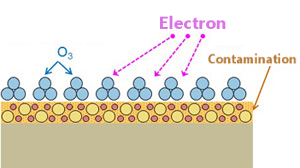

The high concentration ozone gas can be react with electron beam irradiation and decomposes contamination.

Ozone gas can reduce contamination and it is effective in the removal of the grown contamination.

EB irradiation to Mo aperture (Φ100μm)

Without ozone cleaning

With ozone cleaning

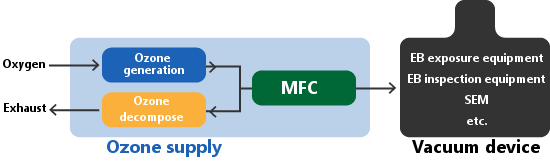

Ozone cleaning system diagram

PAGE TOP

With the cycle of ① ~ ④ . Ozone cleaning continue to remove contamination in vacuum.
